Single Element Belt Speed Change Devices

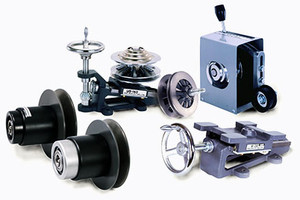

  • Belted RPM change lineup

The best attribute of Belt Speed Change Drives is that they may be manipulated while the machine is running. The operator may adjust output speed by turning the dial to mechanically change the pitch diameter of the pulley. This space saving design is easy to install, and is virtually maintenance free. Changing belts is really the only preventative maintenance concern during the device lifetime.

Contact Us for Belt Speed Change Drives

Contact Miki Pulley for more information or request a quote today.

Model P
P model		 Model AP
AP model		 Model PL
PL model		 Model PK
PK model		 Model PF
PF model
P Model


P Model

The P model is a variable diameter pulley with a standard V-belt that changes rotational speed on the motor side. The unique cam mechanism prevents slips, and speed can be changed without altering the center distance relative to the driven side.

  • Standard motor output: 0.2kW ~ 3.7kW (4-pole)
  • Transmission gear ratio: Approximately 1:1.5
  • Pulley outer diameter: 86mm ~ 218mm

catalog_download_button
2d_cad_download_button



Back to Top
AP Model


AP Model

The AP model is a variable diameter pulley with a standard V-belt that changes rotational speed on the motor side. The unique cam mechanism prevents slips, and speed can be changed without altering the center distance relative to the driven side.

  • Standard motor output: 0.2kW ~ 3.7kW (4-pole)
  • Transmission gear ratio: Approximately 1:2
  • Pulley outer diameter: 86mm ~ 164mm

catalog_download_button
2d_cad_download_button



Back to Top
PL Model


PL Model

The PL model is a variable diameter pulley with a standard V-belt that changes rotational speed on the motor side. This mechanism can accommodate a large speed change ratio, up to and including 1:24. Applicable motor range for the 4 available sizes include 0.2kW to 1.5kW (4-pole).

  • Standard motor output: 0.2kW ~ 1.5kW (4-pole)
  • Transmission gear ratio: Approximately 1:2
  • Pulley outer diameter: 116mm ~ 212mm

catalog_download_button
2d_cad_download_button



Back to Top
PK Model


PK Model

The PK model is a variable diameter pulley with a standard V-belt that changes rotational speed on the motor side. This mechanism can accommodate a large speed change ratio, and Applicable motor range for the available sizes include 0.4kW to 18.5kW (6-pole), with 6 sizes offered in the lineup.

  • Standard motor output: 0.2kW ~ 11kW (4-pole) 11kW ~ 18.5kW (6-pole)
  • Transmission gear ratio: Approximately 1:3
  • Pulley outer diameter 150mm ~ 400mm

catalog_download_button
2d_cad_download_button



Back to Top
PF Model


PF Model

The PL model is a variable diameter pulley with a standard V-belt that changes rotational speed on the motor side. Due to the double swinging design of the pulley, the belt profile remains constant assuring long operational lifetime. Applicable motor range for the 4 available size: 0.4kW to 3.7kW (4-pole).

  • Standard applicable motor output:  0.2kW ~ 3.7kW (4-pole)
  • Transmission gear ratio:  1:2.4
  • Pulley outer diameter:  155mm ~ 250mm

catalog_download_button
2d_cad_download_button
