101-16-13G-24V

Part Number: 101-16-13G-24V
Quantity:
101-13

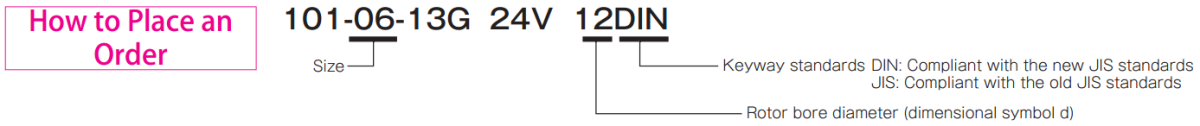

place_order-101-13

Specifications

  • Dynamic Friction Torque (Nm): 80.0
  • Maximum RPM: 3,000
  • Outer Diameter (B) mm: 169.00
  • Flange dimension (C1) mm: 190.00
  • Overall Height (L) mm: 46.50
  • Stator Height (H) mm: 37.5
  • Collar Diameter (F) mm: 62
  • Mass (kg): 5.100
  • Total Work Performed ET (J): 470×10⁶
  • Armature Pull-in Time (seconds): 0.05
  • Heat Resistance Class: B
  • Coil Voltage (V): DC24
  • Coil Wattage (W): 35
  • Coil Resistance (ohms): 16
Click image to enlarge
