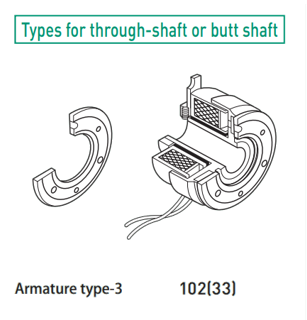

Types for Through or Butt Shaft 102-__-33

The 102 model for Through or Butt Shaft (Type-33) armature is intended for direct-mounting to a customer-supplied pulley, sprocket, or hub.  The armature includes a bolt pattern for this purpose. This is to be shaft-mounted, and includes an anti-rotation bracket to be connected to the machine structure during installation. Reference the instruction manual during installation, as this device requires a pre-set air gap with and perpendicularity / run-out tolerances for proper operation.
