Butt Shaft Type 102-__-31

Click image to enlarge

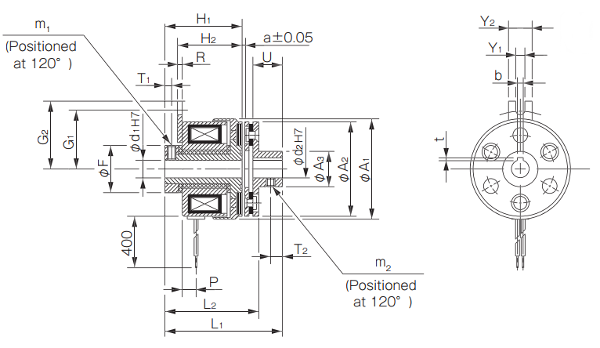

The 102 model Butt-Shaft (Type-31) armature is meant for a butt-shaft connection, basically connecting two independent shafts via the clutch. The input shaft links to the rotor half of the clutch, while the armature attaches to the output shaft, or vice versa.  This is to be shaft-mounted, and includes an anti-rotation bracket to be connected to the machine structure during installation. Please consult the instruction manual during installation, as this device needs a pre-set air gap along with and perpendicularity / run-out tolerances for proper function.
