CS-20-33G

Part Number: CS-20-33G
Quantity:

Specifications

  • Dynamic Friction Torque (Nm): 160.0
  • Rotor Bore Diameter (d, H7) mm: 40
  • Outer Diameter (B) mm: 212.5
  • Stator Height (H) mm: 44
  • Collar Diameter (F) mm: 75
  • Total Work Performed ET (J): 10 × 10⁸
  • Armature Pull-in Time (seconds): 0.250
  • Heat Resistance Class: B
  • Flange dimension (C1) mm: 212
  • Overall Height (L1) mm: 60.4
  • Coil Voltage (V): DC24
  • Coil Wattage (W): 45
  • Coil Resistance (ohms): 13
  • Mass (kg): 9.8
  • Maximum RPM: 1,500

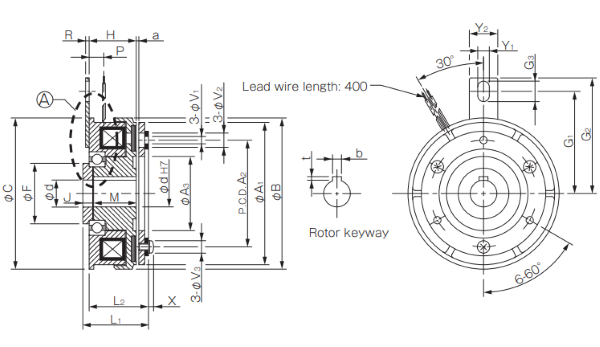

Click image to enlarge
