CS_31G Model Clutches

Contact us
Request for Quote

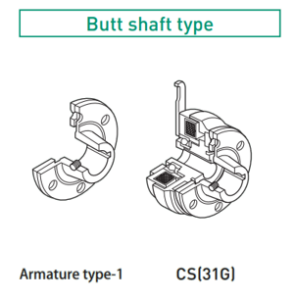

These clutches are applicable to a wide range of industrial machinery. The CS Butt-Shaft Type 31G armature is intended for a butt-shaft connection, essentially serving as a clutch-coupling connecting two independent shafts.  The input shaft connects to the rotor half of the clutch, while the armature connects to the output shaft, or vice versa. Please refer to the instruction manual during installation, as this device requires a pre-set air gap along with adherence to perpendicularity / run-out tolerances for proper operation

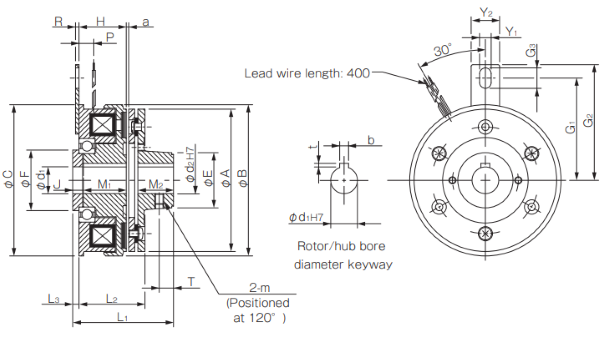

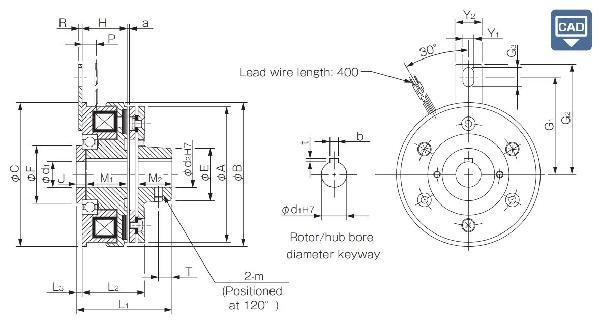

CS-_-31G 2D image
