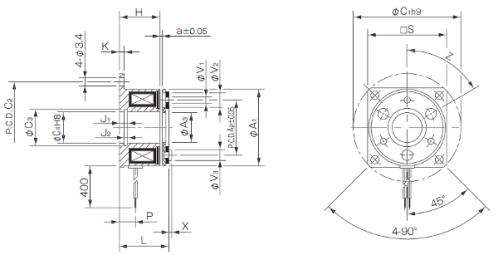

Micro Brakes with Many Applications 112-__-13

Contact us
Request for Quote
The Type-13 armature on the 112 model brakes offers mating part versatility.  The armature involves only the plate spring and rotor disc, meaning the designer may mount this armature assembly directly to their own sprocket, pulley or hub.  There are no internal bearings in the brake, so external bearing support will be needed for the customer-supplied sprocket, pulley, or hub. (These devices are not included with this brake.)  This is a power-on engaged brake, which it halts rotation and holds position when energized.

112-13
