Types with Many Applications 111-__-13

Click image to enlarge

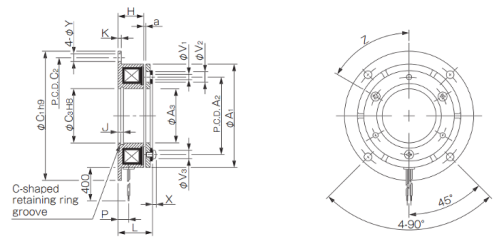

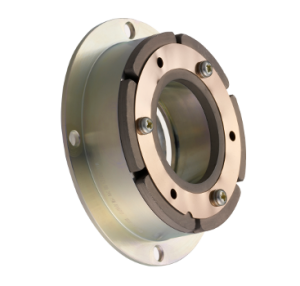

The Type-13 armature on the 111 model brakes offers mating part versatility.  The armature involves only the plate spring and friction disc, which means the designer may mount this armature assembly directly to their own sprocket or pulley.  There are no internal bearings in the brake, so external bearing support will be needed for the customer-supplied output device (sprocket, pulley, etc.).  These devices are not included with this brake.  This model brake acts as power-on engaged, which means it stops rotation and holds position when energized.
