101-06-15G-24V

Part Number: 101-06-15G-24V

Quantity:

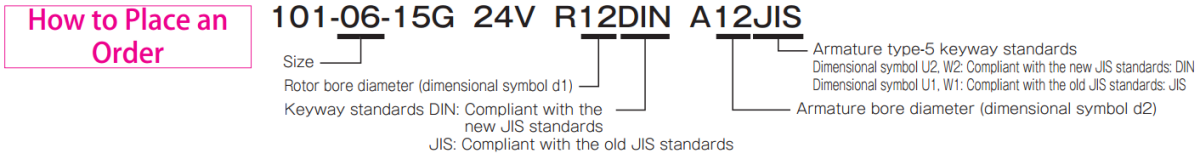

place_order-101-15

Electromagnetic (E.M.) Clutches 101-06-15G-24V Specifications

Dynamic Friction Torque (Nm): 5.0
Maximum RPM: 8,000
Outer Diameter (B) mm: 67.50
Flange dimension (C1) mm: 80.00
Overall Height (L) mm: 28.00
Stator Height (H) mm: 24
Collar Diameter (F) mm: 23
Mass (kg): 0.660
Total Work Performed ET (J): 36×10⁶
Armature Pull-in Time (seconds): 0.02
Heat Resistance Class: B
Coil Voltage (V): DC24
Coil Wattage (W): 11
Coil Resistance (ohms): 52

Catalog Download Manual Download Datasheet Download

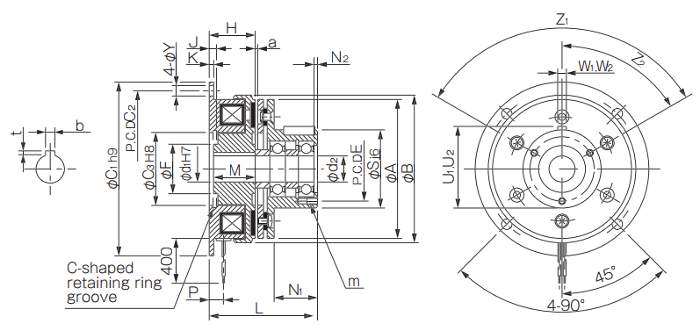

Click image to enlarge

Adobe 3D PDF help

Configuration
Bore Dia d H7 (mm)

Outer Diameter A1 (in)	2.480
Bore Diameter A3 (in)	1.36
Outer Diameter B (in)	2.657
Inside Diameter (in)	1.38
Bore Size (in)	0.5
Input Shaft Bore Diameter d (in)	0.472
Rotor Bore Diameter (d1 H7) (in)	0.5
Dynamic Friction Torque TC (ft lb)	3.7
K (in)	0.08
Length (in)	1.102
Mass (lb)	1.455
Max. Rotation Speed (min-1) (rpm)	8,000
Static Friction Torque TC (ft lb)	4.1

place_order-101-15
