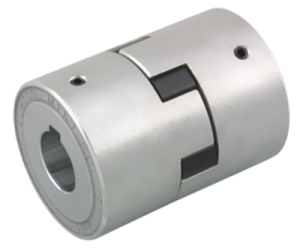

AL-035

Part Number: AL-035
Quantity:
al
place_order-al

Specifications

  • Nominal Torque (Nm): 0.5
  • Maximum Torque (Nm): 2
  • Bore Range (mm): 4 - 8
  • Outer Diameter (D) mm: 16.10
  • Length (L) mm: 20.50
  • Dimensions L1 (mm): 6.5
  • Dimensions L2 (mm): 7.5
  • Maximum RPM: 18,000
  • Mass (kg): 0.010
  • Misalignment Angular (degrees): 0.5
  • Misalignment Axial (mm): + 0.3
  • Misalignment Parallel (mm): 0.10
Click image to enlarge
