ALS-030-Y Keyway

Part Number: ALS-030-Y Keyway
Quantity:
als-030-y_keyway

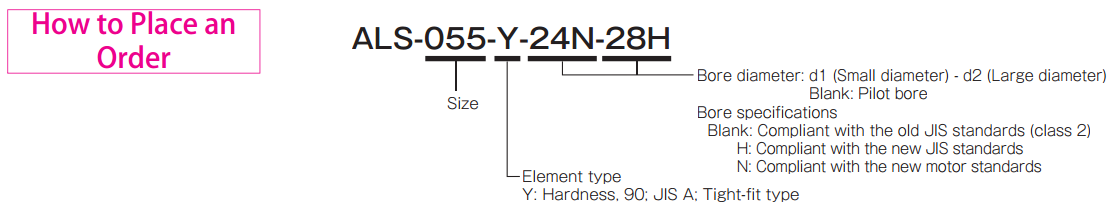

place_order-als_y_key

Specifications

  • Nominal Torque (Nm): 7.5
  • Maximum Torque (Nm): 15
  • Bore Range (mm): 8 - 14
  • Outer Diameter (D) mm: 30.00
  • Length (L) mm: 35.00
  • Width (S) mm: 1.50
  • Dimension C (mm): 5.50
  • Dimensions L1 (mm): 11.0
  • Dimensions L2 (mm): 11.0
  • Maximum RPM: 15,900
  • Mass (kg): 0.047
  • Misalignment Angular (degrees): 1
  • Misalignment Axial (mm): 0 ~+ 1
  • Misalignment Parallel (mm): 0.15
Click image to enlarge

ALS-030-Y Keyway

Category: ALS-Y


Adobe 3D PDF help

Product Details

Configuration
Bore Size d1 (small diameter)
Bore Size d2 (large diameter)
