Specifications

• Nominal Torque (Nm): 17.0
• Maximum Torque (Nm): 34
• Bore Range (mm): 11 - 20

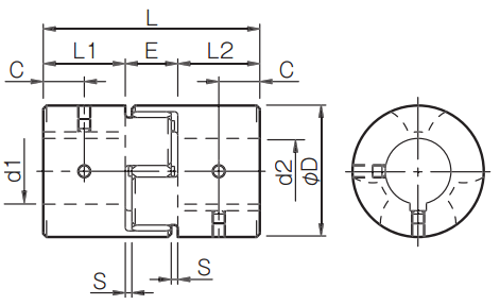

• Outer Diameter (D) mm: 40.00
• Length (L) mm: 66.00
• Width (S) mm: 2.00
• Dimension C (mm): 12.50
• Dimensions L1 (mm): 25.0
• Dimensions L2 (mm): 25.0
• Maximum RPM: 11,900
• Mass (kg): 0.150
• Misalignment Angular (degrees): 1
• Misalignment Axial (mm): 0 ~+ 1.2
• Misalignment Parallel (mm): 0.10
