CS-10-31G

Part Number: CS-10-31G
Quantity:
CS-_-31G 2D image

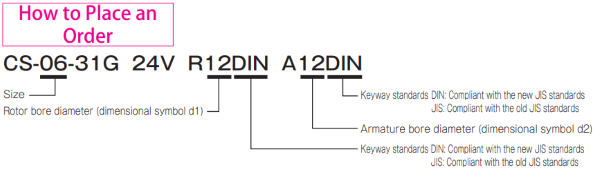

place order CS-__-31G

Specifications

  • Dynamic Friction Torque (Nm): 20.0
  • Rotor Bore Diameter (d1, H7) mm: 20
  • Armature Bore Diameter (d2, H7) mm: 20
  • Outer Diameter (B) mm: 106
  • Stator Height (H) mm: 30
  • Collar Diameter (F) mm: 40
  • Total Work Performed ET (J): 130 × 10⁶
  • Armature Pull-in Time (seconds): 0.025
  • Heat Resistance Class: B
  • Flange dimension (C1) mm: 106
  • Overall Height (L1) mm: 64.6
  • Coil Voltage (V): DC24
  • Coil Wattage (W): 20
  • Coil Resistance (ohms): 29
  • Mass (kg): 1.73
  • Maximum RPM: 3,000
