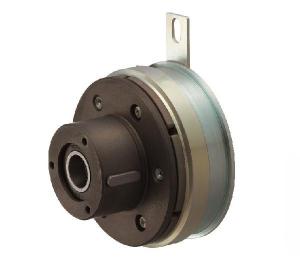

CS-16-35G

Part Number: CS-16-35G
Quantity:

Specifications

  • Dynamic Friction Torque (Nm): 80.0
  • Rotor Bore Diameter (d1, H7) mm: 30
  • Armature Bore Diameter (d2, H7) mm: 30
  • Outer Diameter (B) mm: 169
  • Stator Height (H) mm: 37.5
  • Collar Diameter (F) mm: 58
  • Total Work Performed ET (J): 470 × 10⁶
  • Armature Pull-in Time (seconds): 0.050
  • Heat Resistance Class: B
  • Flange dimension (C1) mm: 169
  • Overall Height (L1) mm: 108
  • Coil Voltage (V): DC24
  • Coil Wattage (W): 35
  • Coil Resistance (ohms): 16
  • Mass (kg): 7.1
  • Maximum RPM: 2,000
Click image to enlarge
