CSZ-08-35

Part Number: CSZ-08-35
Quantity:
csz

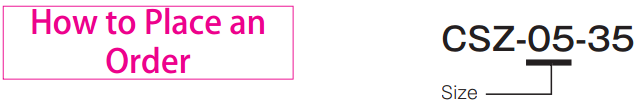

place_order-csz

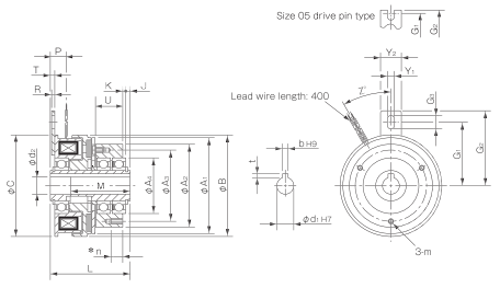

Specifications

  • Dynamic Friction Torque (Nm): 10.0
  • Outside Rotor Diameter (B) mm: 85.00
  • Outside Stator Diameter (C) mm: 85.00
  • Rotor Bore Diameter (d1, H9) mm: 15
  • Armature Bore Size (d2, h9) mm: 15.5
  • Overall Height (L) mm: 58.00
  • Mass (kg): 1.23
  • Maximum RPM: 1,800
  • Heat Resistance Class: B
  • Armature Pull-in Time (seconds): 0.025
  • Total Work Performed ET (J): 60×10⁶
  • Coil Voltage (V): DC24
  • Coil Wattage (W): 15
  • Coil Resistance (ohms): 38
Click image to enlarge

CSZ-08-35

Category: CSZ Model Clutches


Adobe 3D PDF help

Product Details
