Specifications

• Dynamic Friction Torque (Nm): 160.0
• Static Friction Torque TC (Nm): 175.0
• Maximum RPM: 2,500

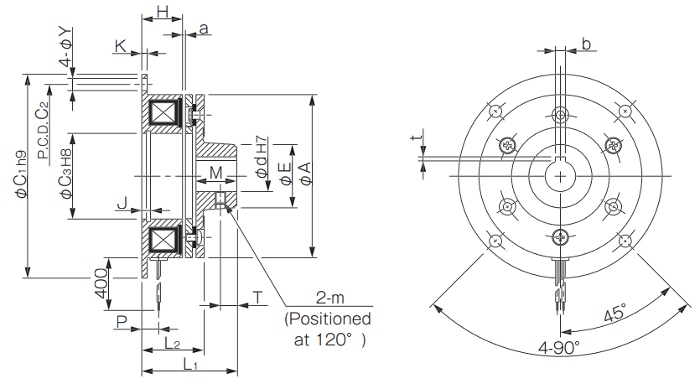

• Outer Diameter (A) mm: 200.00
• Length (L1) mm: 86.5
• Flange dimension (C1) mm: 230.00
• Bolt Circle (C2) mm: 215.0
• Stator Inside Diameter (C4) mm: 100.0
• Stator Height (H) mm: 30
• Armature Pull-in Time (seconds): 0.065
• Heat Resistance Class: B
• Mass (kg): 7.100
• Total Work Performed ET (J): 10×10⁸
• Coil Voltage (V): DC24
• Coil Wattage (W): 45
• Coil Resistance (ohms): 13
