Electromagnetic Brakes (E.M.) 111-16-13G-24V Specifications

• Dynamic Friction Torque (Nm): 80.0
• Static Friction Torque TC (Nm): 90.0
• Maximum RPM: 3,000

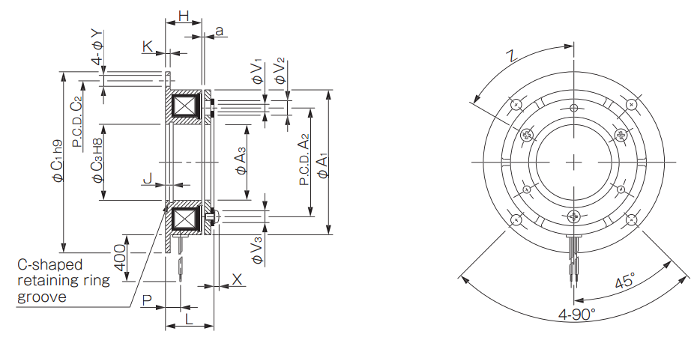

• Outer Diameter (A1) mm: 160.00
• Overall Height (L) mm: 35.00
• Flange dimension (C1) mm: 190.00
• Bolt Circle (C2) mm: 175.0
• Stator Inside Diameter (C4) mm: 80.0
• Stator Height (H) mm: 26
• Armature Pull-in Time (seconds): 0.035
• Heat Resistance Class: B
• Mass (kg): 3.150
• Total Work Performed ET (J): 470×10⁶
• Coil Voltage (V): DC24
• Coil Wattage (W): 35
• Coil Resistance (ohms): 16
