Electromagnetic Brakes (E.M.) BSZ-06-12 Specifications

• Dynamic Friction Torque Nm: 5.0

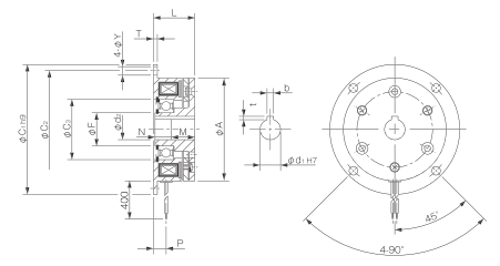

• Rotor Bore Diameter (d1 H7) mm: 12
• Bolt Circle (C2) mm: 72.0
• Total Work Performed ET (J): 29×10⁶
• Armature Pull-in Time (seconds): 0.017
• Heat Resistance Class (B): B
• Outer Diameter (A) mm: 63.00
• Flange dimension (C1) mm: 80.00
• Overall Height (L) mm: 25.50
• Coil Voltage (V): DC24
• Coil Wattage (W): 11
• Coil Resistance (ohms): 52
