Specifications

• Dynamic Friction Torque (Nm): 2.4
• Maximum RPM: 10,000

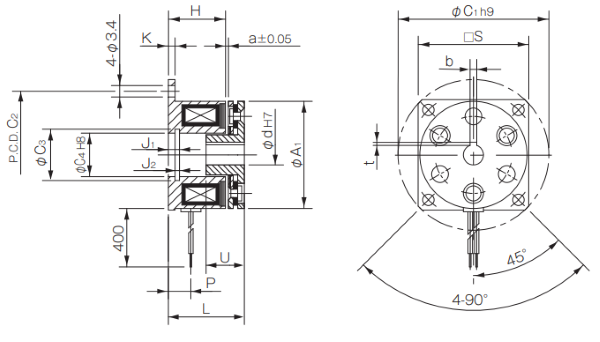

• Outer Diameter (A1) mm: 50.00
• Length (L) mm: 28.20
• Flange Diameter (C1) mm: 65.00
• Bolt Circle (C2)mm: 58.0
• Stator Inside Diameter (C4) mm: 26
• Stator Height (H) mm: 22
• Armature Pull-in Time (seconds): 0.01
• Heat Resistance Class: B
• Mass (kg): 0.215
• Total Work Performed ET (J): 9×10⁶
• Allowable Engaging Energy E (J): 9,000
• Coil Voltage (V): DC24
• Coil Wattage (W): 10
• Coil Resistance (ohms): 58
