Electromagnetic Brakes (E.M.) 112-04-11-24V Specifications

• Dynamic Friction Torque (Nm): 1.2
• Maximum RPM: 10,000

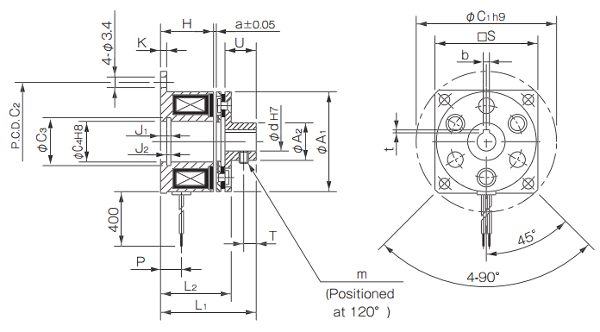

• Outer Diameter (A1) mm: 40.00
• Length (L1) mm: 34.8
• Flange Diameter (C1) mm: 54.00
• Bolt Circle (C2)mm: 47.0
• Stator Inside Diameter (C4) mm: 19
• Stator Height (H) mm: 20
• Armature Pull-in Time (seconds): 0.007
• Heat Resistance Class: B
• Mass (kg): 0.131
• Total Work Performed ET (J): 3×10⁶
• Allowable Engaging Energy E (J): 4,500
• Coil Voltage (V): DC24
• Coil Wattage (W): 8
• Coil Resistance (ohms): 72
