BXH-08-10G

Part Number: BXH-08-10G
Quantity:

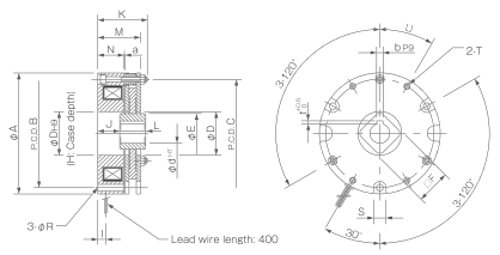

bxh

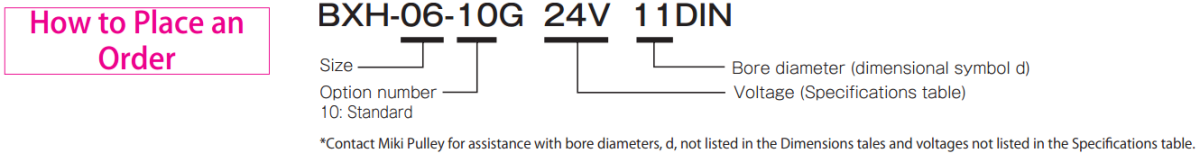

place_order-bxh

Specifications

  • Static Friction Torque (Nm): 8.0
  • Maximum RPM: 5,000
  • Outside Diameter (A) mm: 96.00
  • Bolt Circle Diameter (B) mm: 86.00
  • Armature Pull-in Time (seconds): 0.045
  • Backlash: 1.18
  • Overall Height (K) mm: 41.0
  • Mass (kg): 1.30
  • Total Braking Energy (J): 3.5×10⁶
  • Coil Resistance (ohms): 26
  • Coil Wattage (W): 23
  • Function: Power Off - Brake Engaged
  • Standard Bore Sizes: 14
  • BXH-08-10G

BXH-08-10G

Category: BXH Model Brake


Adobe 3D PDF help

Product Details

Configuration
Coil Voltage (V)
Bore Dia d H7 (mm)
