BXL-10-12G

Part Number: BXL-10-12G
Quantity:
BXL-RL

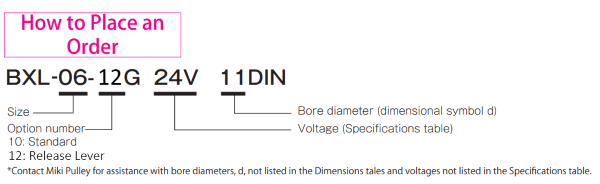

how_to_order BXL-12

Specifications

  • Static Friction Torque (Nm): 8.0
  • Maximum RPM: 4,000
  • Outside Diameter (A) mm: 116.00
  • Bolt Circle Diameter (B) mm: 104.00
  • Armature Pull-in Time (seconds): 0.05
  • Backlash: 1.22
  • Overall Height (K) mm: 57.5
  • Mass (kg): 2.300
  • Total Braking Energy (J): 6.2×10⁷
  • Coil Resistance (ohms): 21
  • Coil Wattage (W): 27
  • Function: Power Off - Brake Engaged
Click image to enlarge

BXL-10-12G

Category: BXL Release Lever Option


Adobe 3D PDF help

Product Details

Configuration
Coil Voltage (V)
Bore Dia d H7 (mm)
