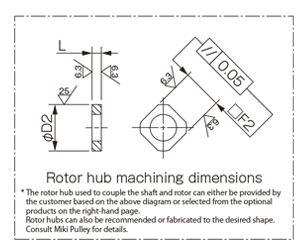

Line Drawing - Click to Enlarge
Product Details

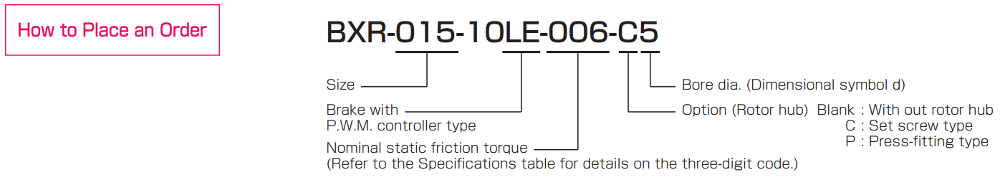

Configuration |
Bore Dia d H7 (mm) |
|
Outer Diameter A (in) |
2.205 |
Bolt Circle Diameter B (in) |
1.969 |
Inner Diameter d h7 (in) |
1.1 |
Input Shaft Bore Diameter d (in) |
0.551 |
Maximum Bore Size d: max (in) |
0.551 |
Length K (in) |
0.57 |
Mass (lb) |
0.353 |
Max. Rotation Speed (min-1) (rpm) |
6,000 |
S |
6.5 |
Static Friction Torque TC (ft lb) |
1.0 |
Overexcitation Output Voltage (v) |
24 |
Overexcitation Output Wattage (w) |
16.5 |
Overexcitation Output Current |
0.688 |
Overexcitation Output Resistance |
35 |
Constant Excitation Output Voltage (v) |
7 |
Constant Excitation Output Wattage (w) |
1.4 |
Constant Excitation Output Current |
0.2 |
Constant Excitation Output Resistance |
35 |
