BXW-02-10

Part Number: BXW-02-10
Quantity:

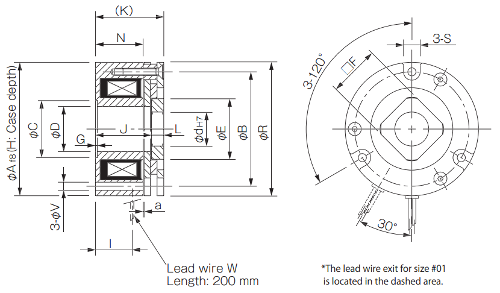

bxw

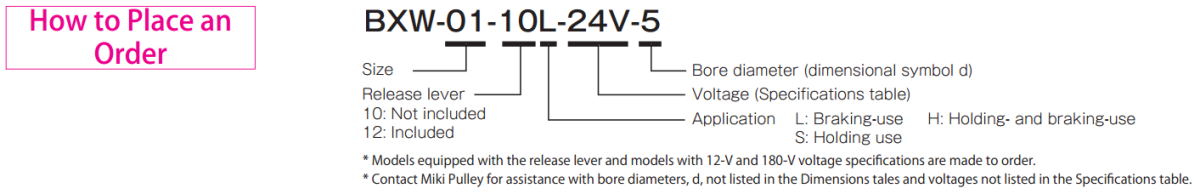

place_order-bxw-lhs

Specifications

  • Static Friction Torque (Nm): 0.3
  • Maximum RPM: 5,000
  • Outside Diameter (A) mm: 47.00
  • Bolt Circle Diameter (B) mm: 40.00
  • Armature Pull-in Time (seconds): 0.008
  • Backlash: 2.6
  • Overall Height (K) mm: 32.0
  • Total Braking Energy (J): 3×10⁶
  • Coil Resistance (ohms): 87
  • Coil Wattage (W): 7
  • MIN: 6
  • Standard Bore Sizes: 6
  • MAX: 7
  • BXW-02-10

BXW-02-10

Category: BXW Non-Release Lever Option


Adobe 3D PDF help

Product Details

Configuration
Holding Brake
Coil Voltage (V)
Bore Dia d H7 (mm)
