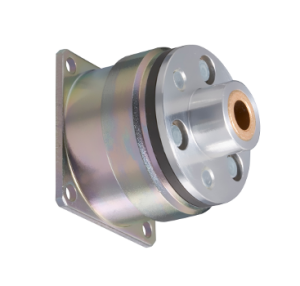

Electromagnetic (E.M.) Clutches 102-04-15-24V Specifications

• Dynamic Friction Torque (Nm): 1.2

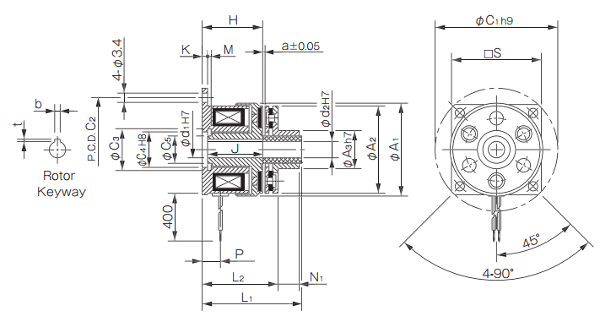

• Outer Diameter (A1) mm: 43.00
• Rotor Bore Diameter (d1, H7) mm: 8, 10
• Armature Bore Diameter (d2, H7) mm: 8, 10
• Length Height (L1) mm: 40.2
• Flange dimension (S) mm: 41.00
• Bolt Circle (C2) mm: 47.0
• Allowable Engaging Energy E ea (J): 4,500
• Armature Pull-in Time (seconds): 0.011
• Heat Resistance Class: B
• Coil Voltage (V): DC24
• Coil Wattage (W): 8
• Coil Resistance (ohms): 72
• Mass (kg): 0.195
• Maximum RPM: 500
• Mounting Style: Flange
