ALS-020-Y Clamp

Part Number: ALS-020-Y Clamp

Quantity:

Traditional sintered version available for all quantities and sizes.
New Machined Steel version available for quantities over 50-pcs. Contact factory for more information.

Shaft Couplings ALS-020-Y Clamp Specifications

Nominal Torque (Nm): 3.0
Maximum Torque (Nm): 6
Bore Range (mm): 5 - 9.525

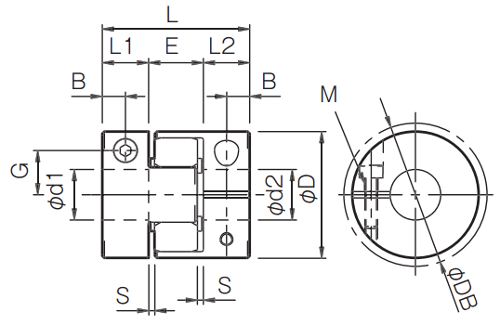

Outer Diameter (D) mm: 20.00
Length (L) mm: 30.00
Width (S) mm: 1.00
Dimension B (mm): 5.00
Dimensions L1 (mm): 10.0
Dimensions L2 (mm): 10.0
Maximum RPM: 23,800
Mass (kg): 0.018
Misalignment Angular (degrees): 1
Misalignment Axial (mm): 0 ~+ 0.8
Misalignment Parallel (mm): 0.15

Catalog Download Manual Download Datasheet Download

Click image to enlarge

Adobe 3D PDF help

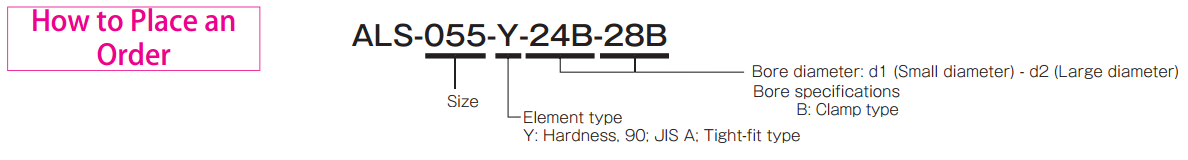

Configuration
Bore Size d1 (small diameter)
Bore Size d2 (large diameter)

Traditional sintered version available for all quantities and sizes.
New Machined Steel version available for quantities over 50-pcs. Contact factory for more information.

Worldwide Partner
Network

C (in)	0.197
Outer Diameter D (in)	0.787
Length (in)	1.181
L1 (in)	0.39
L2 (in)	0.39
Mass (lb)	0.040
Max. Rotation Speed (min-1) (rpm)	23,800
Misalignment Angular (degrees)	1
Misalignment Axial (in)	0 ~+ 0.8
Misalignment Parallel (in)	0.006
Width (S) (in)	0.039
Torque Max. (ft lb)	4
Nominal Torque (ft lb)	2.2

ALS-020-Y Clamp

Shaft Couplings ALS-020-Y Clamp Specifications

ALS-020-Y Clamp
