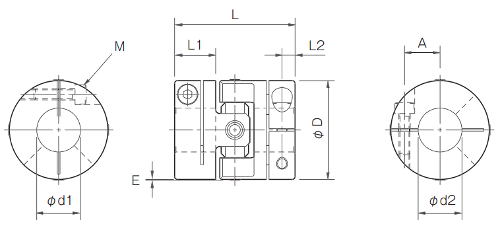

Line Drawing - Click to Enlarge
Product Details
| Configuration |
| Bore Size d1 (small diameter) |
|
| Bore Size d2 (large diameter) |
|
| Outer Diameter D (in) |
1.811 |
| Length (in) |
2.126 |
| L1 (in) |
0.71 |
| L2 (in) |
0.26 |
| Mass (lb) |
0.419 |
| Max. Rotation Speed (min-1) (rpm) |
3,000 |
| Misalignment Angular (degrees) |
4 |
| Misalignment Parallel (in) |
0.020 |
| Rated Torque (ft lb) |
18.44 |
