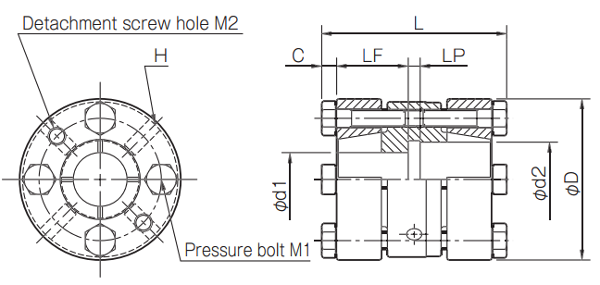

Line Drawing - Click to Enlarge
Product Details
| Configuration |
| Bore Size d1 (small diameter) |
|
| Bore Size d2 (large diameter) |
|
| C (in) |
0.197 |
| Outer Diameter D (in) |
2.126 |
| Length (in) |
2.441 |
| LF (in) |
0.945 |
| LP (in) |
0.16 |
| Mass (lb) |
1.477 |
| Max. Rotation Speed (min-1) (rpm) |
13,000 |
| Rated Torque Range (ft lb) |
80-190 Nm |
