Shaft Couplings LM-9 Specifications

• Nominal Torque (Nm): 1.0
• Maximum Torque (Nm): 2.0
• Bore Range (mm): 6 - 9

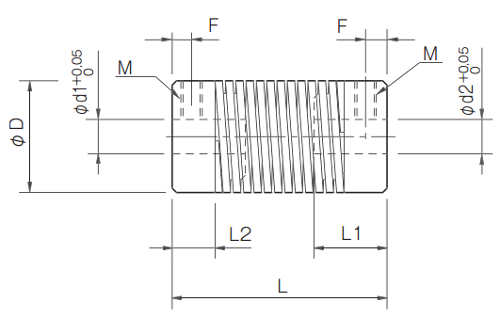

• Outer Diameter (D) mm: 20.00
• Length (L) mm: 40
• Length L1 (mm): 14.0
• Length L2 (mm): 7.5
• Dimension F (mm): 4
• Misalignment Angular (degrees): 8
• Misalignment Axial (mm): ±1.0
• Misalignment Parallel (mm): 2.5
• Maximum RPM: 6,000
• Mass (kg): 0.05
