Specifications

• Nominal Torque (Nm): 20
• Maximum Torque (Nm): 40
• Bore Range (mm): 10 - 16

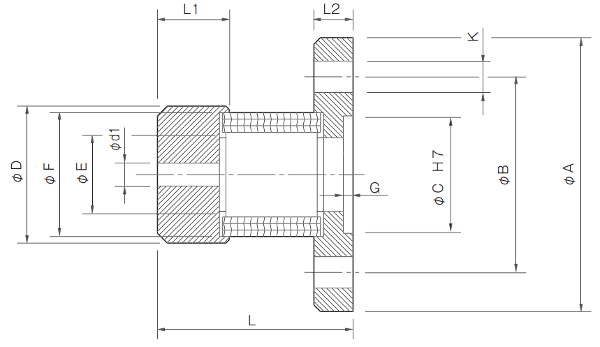

• Outer Diameter (D) mm: 35
• Length (L) mm: 50
• Dimension L1 (mm): 22
• Dimension L2 (mm): 6.5
• Flange Diameter (A) mm: 58
• Bolt Circle (B) mm: 47
• Maximum RPM: 9,000
• Mass (kg): 0.31
• Misalignment Angular (degrees): 3
• Misalignment Axial (mm): + 1.2
• Misalignment Parallel (mm): 0.6
