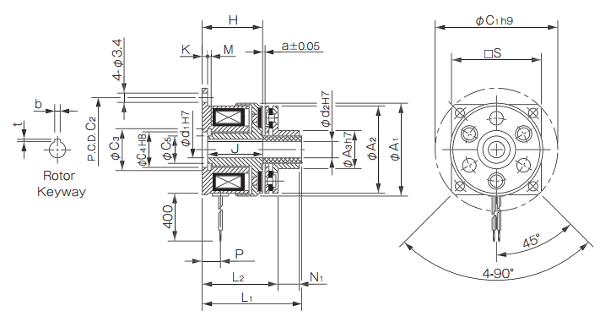

Through Shaft Type 102-___15

Click image to enlarge
The 102 model Through-Shaft (Type-15) armature is meant for a continuous through-shaft connection.  In this type, the armature is reinforced with internal bearings, and mounts on the same shaft as the rotor.  Please refer to the instruction manual during installation, as this device requires a pre-set air gap along with and perpendicularity / run-out tolerances for proper operation.
