Through Shaft Type 102-___35

Click image to enlarge

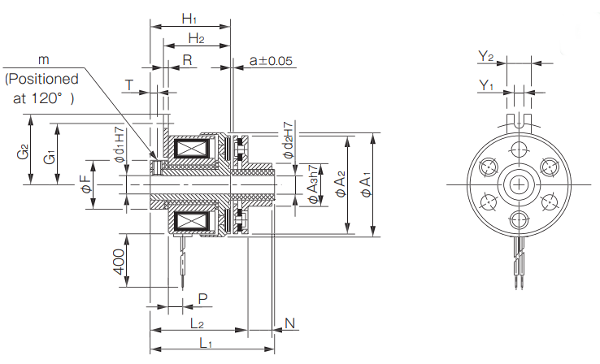

The 102 model Through-Shaft (Type-35) armature is meant for a continuous through-shaft connection.  In this type, the armature is reinforced with internal bearings, and mounts on the same shaft as the rotor.  This includes an anti-rotation bracket to be connected to the machine structure during installation.  Please refer to the instruction manual during installation, as this device requires a pre-set air gap along with and perpendicularity / run-out tolerances for proper operation.
