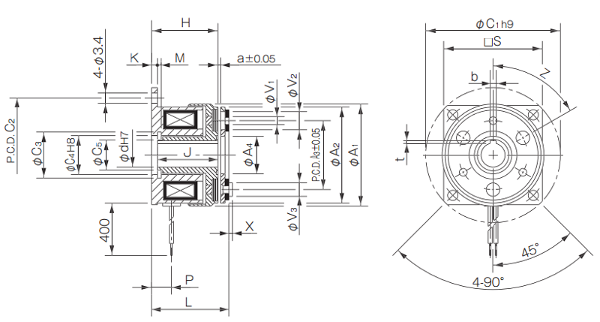

Types for Through or Butt Shaft 102-__-13

Click image to enlarge
The 102 model for Through or Butt Shaft (Type-13) armature is intended for direct-mounting to a customer-supplied pulley, sprocket, or hub.  The armature includes a bolt pattern for this purpose. Reference the instruction manual during installation, as this device requires a pre-set air gap with and perpendicularity / run-out tolerances for proper operation.
